Construction parameters "x values"



Construction parameters can be applied during pattern development. This enables the user to comfortably modify already finished patterns by simply changing the construction parameters.

The basic blocks delivered with Grafis are already very flexible because of x values:

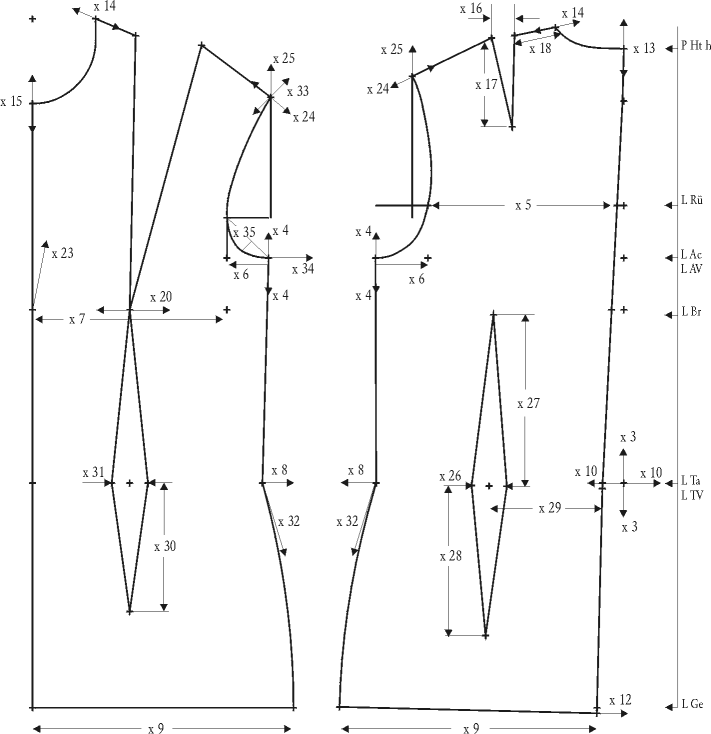

Basic block "Bodice" of system "Optimass"

The user can apply own x values during pattern development. Userfull x values for the development of a revers collar are for instance:

• width of collar stand
• width of revers
• angle of revers edge
• length of collar edge
• angle of collar edge
• visible collar width at shoulder
• collar width at centre back

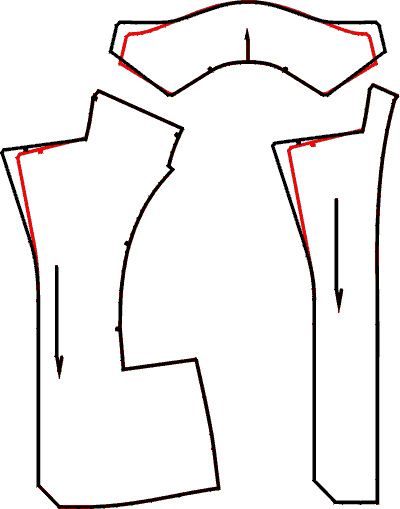

Variation of construction parameter "width of revers" in the pattern development piece

The change of the revers width will automatically transferred to all pieces which depends on the pattern development piece (here production pieces: centre front, facing front, upper sleeve).
